Zinc Wire – Electric or Hot-Dipped Galvanized Zinc Wire

Zinc wire with clean and smooth surface has good electric conductivity and high durability. It's widely used for construction, woven wire mesh, handicraft, highway fence, product packaging, and other daily civil using.

ZC-01: Electric galvanized zinc wire.

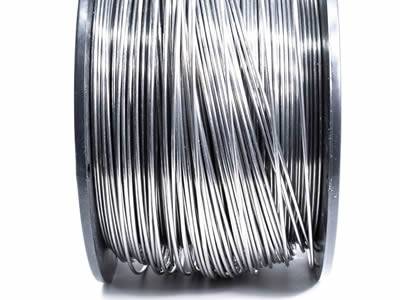

ZC-02: Hot-dipped galvanizing zinc wire.

Specifications of zinc wire

• Material: high quality low carbon steel wire.
• Wire diameter: 0.5–5 mm.
• Maximum zinc coated: 300 g/m².
• Chemical composition: Pb, Cd, Fe, Sn, Cu.
• Physical characteristics
  • Density: 7.14 g/cm³.
  • Melting point: 419.6 C.
  • Boiling point: 907 C.
  • Tensile strength
    • Soft zinc wire: lower than 100 N/mm².
    • Medium zinc wire: 100–120 N/mm².
    • Hard zinc wire: higher than 120 N/mm².
  • Elongation at rupture
    • Soft zinc wire: 60–100%.
    • Medium zinc wire: 40–80%.
    • Hard zinc wire: 30–60%.
• Product purity: more than 99.99%.
• Packaging: manufactured in spool or coil; then packaged with carton or pallet.
  • Spool zinc wire
    • Outer diameter: 300 mm.
    • Weight: 10–15 kg.
  • Coil zinc wire
    • Outer diameter: 500 mm.
    • Weight: 30-250 kg.
• Steel wire zinc coating
  • Hot-dip galvanized.
  • Electric galvanized.

Features of zinc wire

• High product purity.
• Good toughness and elasticity.
• Clean and smooth surface.
• Anti corrosion surface treatment.
• Anti hard environment.
• Good electric conductivity.
• Durable and long service life.

Applications of zinc wire

• Construction area.
• Woven wire mesh.
• Handicraft.
• Highway fence.
• Product packaging.
• Daily civil use.

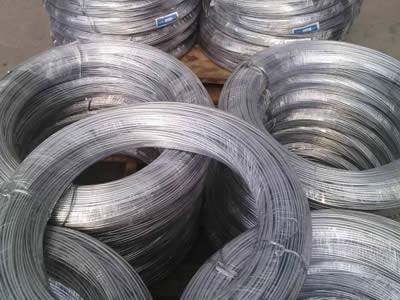

ZC-03: Zinc wire package with films.

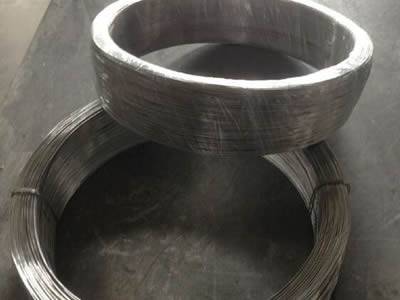

ZC-04: Two coils of zinc wire.
