Welded Mesh Panel – Smooth Surface and Firm Structure

Welded mesh panel with smooth surface and firm structure is made of high quality low carbon steel, stainless steel and aluminum alloy steel. Its surface treatment includes PVC coated, PVC praying, hot-dipped galvanized and electric galvanized. The PVC coated and galvanized surfaces have good corrosion resistance and weather resistance, so it can provides a long service life. The common size of panel usually is 1800 mm × 3000 mm, we also accept other sizes for customers' needs.

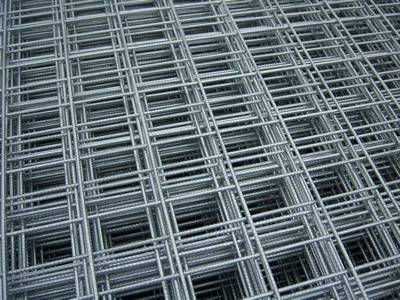

Welded mesh panel with galvanized surface.
WMP-01: Welded mesh panel galvanized surface has a good weather resistance.

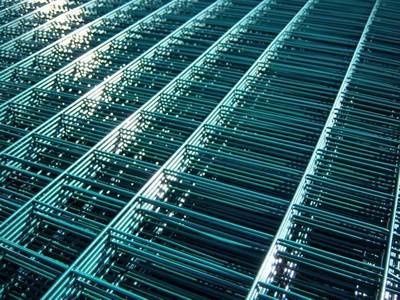

Welded mesh panel with green PVC coated surface.
WMP-02: Welded mesh panel green PVC coated surface has good anti-rust.

Specification:

  • Material: low carbon steel wire, stainless steel wire, aluminum-magnesium alloy wire.
  • Process: welded after galvanized and galvanized after welding.
  • Surface treatment: galvanized, PVC coated, powder coated, etc.
  • Color: white, green, black, accept customer's special request.
  • Panel size: 1800 mm × 3000 mm (or more).
  • PVC coated thickness: 0.5 mm – 1.0 mm.
Table 1: Mesh Common Specification
Mesh Wire Diameter
Expressed in Inches Millimeters Diameter Millimeters
1" × 1" 25 mm × 25 mm 14 G – 11 G 2 mm – 3 mm
2" × 1" 50 mm × 25 mm 14 G – 8 G 2 mm – 4 mm
2" × 2" 50 mm × 50 mm 14 G – 8 G 2 mm – 4 mm
3" × 2" 75 mm × 50 mm 14 G – 6 G 2 mm – 5 mm
3" × 3" 75 mm × 75 mm 14 G – 6 G 2 mm – 5 mm
4" × 2" 100 mm × 50 mm 14 G – 4 G 2 mm – 6 mm
4" × 4" 100 mm × 100 mm 14 G – 4 G 2 mm – 6 mm
5" × 5" 125 mm × 125 mm 14 G – 4 G 2 mm – 6 mm
6" × 6" 150 mm × 150 mm 14 G – 4 G 2 mm – 6 mm
Note: Special specifications can be customized.

Feature:

  • Smooth surface.
  • Firm structure.
  • Corrosion resistance.
  • Aging resistance.
  • Weather resistance.
  • Long service life.

Application:

  • Airport fence.
  • Agriculture cage.
  • Construction protection.
  • Slab reinforcement.
  • Reinforcing walls.
  • Floor heating system.

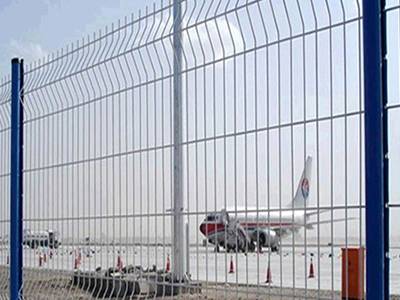

Welded mesh panel as fencing in airport; behind the fence is a plane.
WMP-03: Welded mesh panel fence to protect airport.

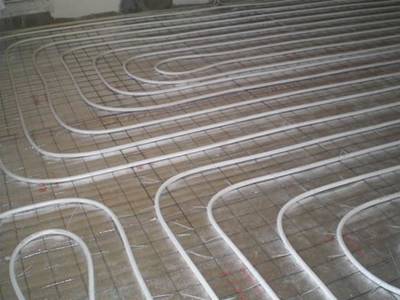

Welded mesh panel is used for floor heating system.
WMP-04: Welded mesh panel floor heating system for serving people.

Package:

  • In plastic films.
  • In wooden or metal pallets.
  • In belts.

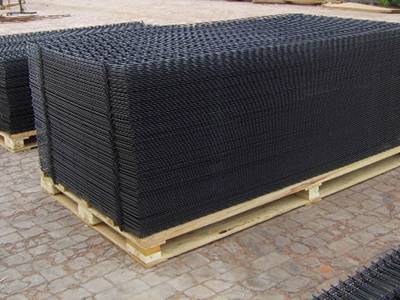

Welded mesh panels are packed in wooden pallets on the ground.
WMP-05: Welded mesh panel packed in wooden pallets.

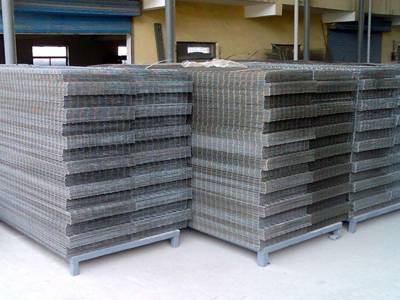

Galvanized welded mesh panels are packed in metal pallets in a warehouse.
WMP-06: Welded mesh panel packed in metal pallets.
