Big Coil Wire Made of Low Carbon Steel with Big Size and Heavy Weight

Big coil wire is a big coil of electro galvanized wire, hot galvanized wire or non-galvanized wire. Its raw material is iron wire, stainless steel wire and aluminum wire, etc. Compared with small coil wire, big coil wire has bigger coil size and heavier weight. In addition, the galvanized wire and PVC coated wire can own good corrosion-resistance and have a long service life.

Big coil of electro galvanized wire tied with belts on the ground.
BCW-01: Big coil electro galvanized wire.
Big coil of hot-dipped galvanized wire tied with belts on the ground.
BCW-02: Big coil of hot-dipped galvanized wire.

Specification:

  • Material: iron wire, stainless steel wire, aluminum wire and PVC coated wire, etc.
  • Standard wire gauge: 8 gauge to 24 gauge. Other sizes available for customers.
  • Tensile strength: 350–550 MPa.
Table 1: Coil Wire Specifications
Electro Galvanized Iron Wire Hot-Dip Galvanized Wire
Specification 0.2–4.0 mm 0.55–5.0 mm
Zinc Rate 7–18 g/m2 40–365 g/m2
Tensile Strength 30–70 kg/mm2
Elongation Rate 10% – 25%
Weight/Coil 10–1000 kg/coil
Packing plastic inside and hessian woven outside;
plastic inside and nylon woven outside.

Feature:

  • Wide range of forms.
  • Wide range of sizes.
  • Wide application.
  • Good tensile and flexibility.
  • Anti-corrosion.
  • Anti-rust.

Application:

  • Tie wire.
  • Binding wire.
  • Fencing wire.
  • Weaving of wire mesh.
  • Other construction.

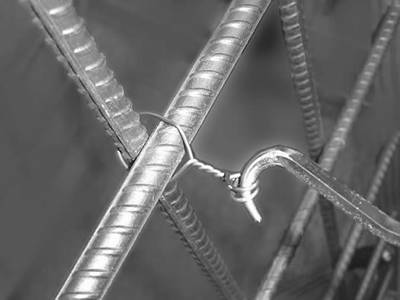

Big coil wire used as binding wire to tie cross steel sticks.
BCW-03: Big coil of wire used for tying sticks.

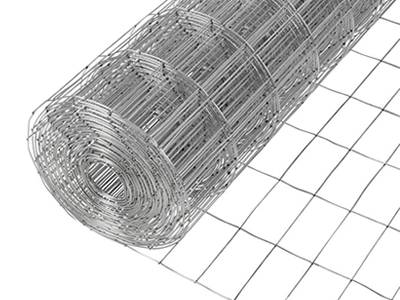

Big coil wire is made into fencing wire.
BCW-04: Big coil wire applied for fencing wire.

Package:

  • Detail:
    • Inside with plastic film and outside with hessian.
    • Inside with plastic film and outside with woven bag.
  • Total: single coil weight varies from 10 kg to 1000 kg, normal popular 50 kg ,100 kg, 500 kg, 800 kg per coil.
