Galvanized Zinc-Coated Steel Wire

1. Dimensions y Tolerances.
   Nominal Diameter: 3.90 mm. Tolerance: +0.04/-0.04 mm. (a)
   Nominal Diameter: 4.40 mm. Tolerance: +0.04/-0.04 mm. (b)
   Nominal Diameter: 4.90 mm. Tolerance: +0.04/-0.04 mm. (c)
   Nominal Diameter: 8.00 mm. Tolerance: +0.04/-0.04 mm. (c)
2. Mechanical Specs.
   Tens. Strength: 590–740 MPa (a); 560–710 MPa (b); 530–680 MPa (c).
   Density: 7.85.
   Elongation (%): >5.
   Heat treatment: Annealing.
   Surface: Redrawn allowed to meet T/S range depending on size.
3. Chemical Specifications.
   C max. 0.08.
   Si max. 0.30.
   Mn max. 0.30–0.60.
   P max. 0.035.
   S max. 0.030.
   Cu max. 0.20-0.25.
   Cr max. 0.20.
   Ni max. 0.25.
4. Galvanizing
   Hot Dip Galvanized.
   Zinc coating: 40-75 g/m².

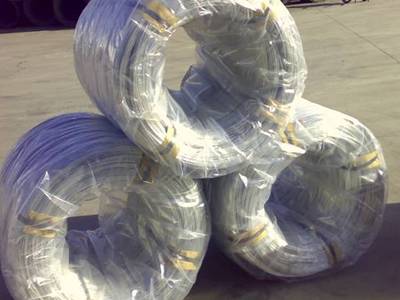

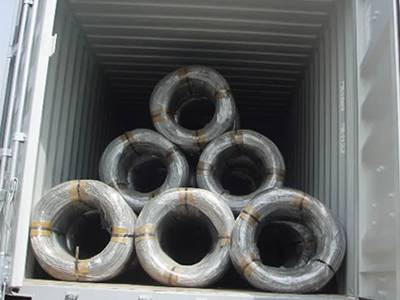

5. Presentation & Packing
   Orbit coil of 900 kg. (+100 / - 0).
   Height: 630 mm.
   Inner Diam.: 530 mm. much preferred, with cardboard spider if size below 4.0 mm or alternative inner diameter if suitable.
   4 rings/4 straps, palletized 900 × 900 max.
   Fully plastic-wrapped.
   Suitable for 1.000 kg. Trans pallet handling.
