Redrawing Galvanized Wire – Good Appearance and High Quality
RGW-01: Coils of redrawing galvanized bright wire.
Redrawing galvanized wire can be divided into two types: electro galvanized redrawing wire and hot-dipped galvanized redrawing wire. Its production process is steel wire rod - the first drawing - annealed - galvanized - the second drawing. As material of fence and material, redrawing galvanized wire has excellent tensile strength and flexibility. In addition, the cost of redrawing galvanized wire is more cheaper than common galvanized wire.
Specification:
- Material: high quality low carbon steel, iron wire.
- Production process: steel wire rod - the first drawing - annealed - galvanized - the second drawing.
- Treatment: zinc coated.
- Surface: bright, smooth.
- Type: electro galvanized redrawing wire, hot-dip galvanized redrawing wire.
- Diameter: 9 gauge – 38 gauge (3.65 mm – 0.15 mm).
Table 1: Specification of Redrawing Galvanized Wire
Wire Gauge (BWG) |
Wire Diameter (mm) |
Allowed Difference (mm) |
Weight (kg) |
34 G |
0.20 |
±0.02 |
10 |
31 G |
0.25 |
30 G |
0.30 |
28 G |
0.35 |
27 G |
0.40 |
±0.03 |
25 G |
0.50 |
23 G |
0.6 |
21 G |
0.8 |
20 G |
0.9 |
19 G |
1.00 |
±0.04 |
25 |
18 G |
1.20 |
17 G |
1.40 |
16 G |
1.60 |
15 G |
1.80 |
±0.05 |
50 |
14 G |
2.00 |
13 G |
2.50 |
11 G |
3.00 |
Characteristic:
- Excellent tensile strength and flexibility.
- Beautiful, bright and smooth surface.
- Enduring fastness.
- Anti-corrosion and anti-oxidation.
- Long service life.
Application:
- Reinforcing construction wire mesh.
- Welded wire mesh panels.
- Chain link fence.
- Crimped wire mesh.
- Nails brush steel rope.
- Construction and handcraft products.

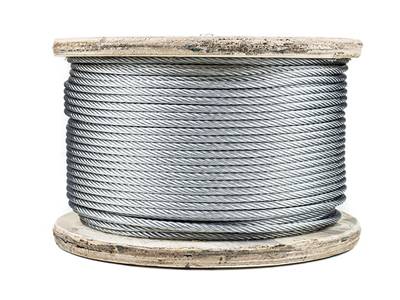

RGW-02: Redrawing galvanized wire for steel rope.

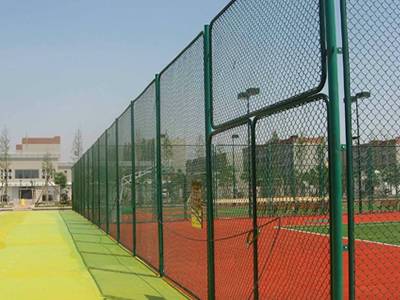

RGW-03: Redrawing galvanized wire for chain link fence.
Package:
- Detail:
- Plastic film inside and hessian cloth outside.
- Plastic film inside and woven bag outside.
- Total:
- In carton and wooden pallet
- In carton and metal pallet.

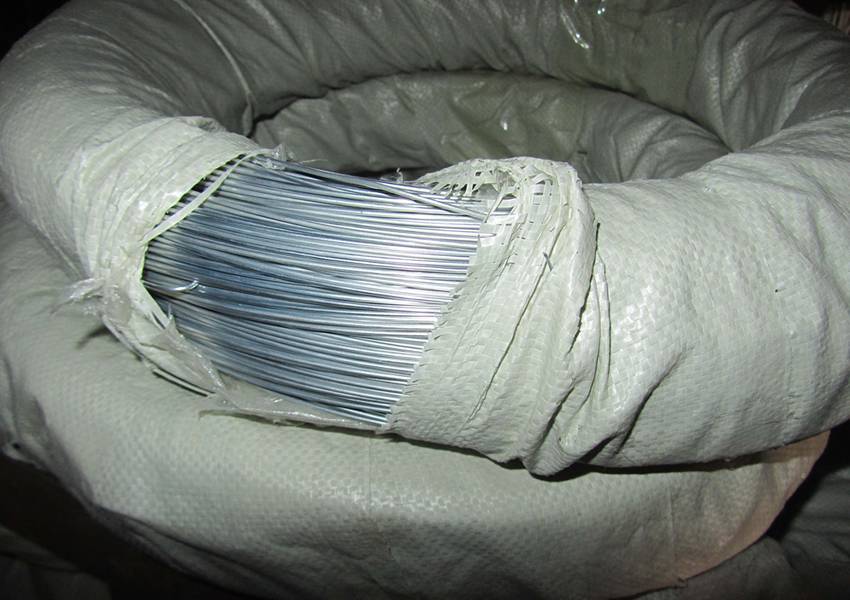

RGW-04: Redrawing galvanized wire packaged in woven bag.
